PAL-204000 & PAL-204040 | PalCare AiO Station Pull Cord and Call Cord

PAL-204000 & PAL-204040 | PalCare AiO Station Pull Cord and Call Cord

AIO stands for All-in-One. The AIO device functions as a pull cord, alert button, check-in button, rounds button, and assist button. Also available with a plug in call cord.

PAL-204000 - All-In-One Station Advanced - Standard Pull Cord

Functionality

Pull Cord

Resident use - Red pull cord can be pulled downward to activate the alarm.

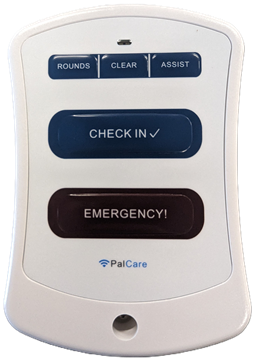

PalCare AiO Station Pull CordAiO Station Advanced

Emergency

Resident use - Red Emergency button can be pressed to activate the alarm.

Check-In

Resident use - When a resident is enrolled in PalCare's Check-In feature, this button can be pressed by the resident to check in every morning.

Clear

Care staff use - Blue Clear (top center) button can be pressed by staff to reset or clear an active alarm.

Rounds

Care staff use - Blue Rounds (top left) button can be pressed by staff to record a rounds check in the resident's apartment.

Assist

Care staff use - Blue Assist (top right) button can be pressed by staff to send an ASSIST alarm to other caregivers.

Reset

Maintenance staff use - Reset button, located on the circuit board inside of the All-In-One, can be used for resetting the device after battery replacement and for learn-in.

PAL-204040 - All-In-One Station Advanced - Momentary Call Cord

Functionality

Pull Cord (Optional)

Resident use - If installed, red pull cord can be pulled downward to activate the alarm.  Not included by default with this device

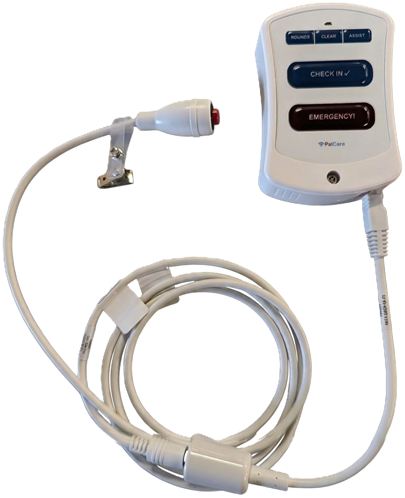

PalCare AiO Station Call CordAiO Station Advanced with Call Cord

Emergency

Resident use - Red Emergency button can be pressed to activate the alarm.

Call Cord

Call cord can only be used with PAL-204040 AiO Stations and cannot be plugged into PAL-204000 AiO Stations.  When the button is pressed on the call cord, the AiO Station activates an alarm.

Check-In

Resident use - When a resident is enrolled in PalCare's Check-In feature, this button can be pressed by the resident to check in every morning.

Clear

Care staff use - Blue Clear (top center) button can be pressed by staff to reset or clear an active alarm.

Rounds

Care staff use - Blue Rounds (top left) button can be pressed by staff to record a rounds check in the resident's apartment.

Assist

Care staff use - Blue Assist (top right) button can be pressed by staff to send an ASSIST alarm to other caregivers.

Reset

Maintenance staff use - Reset button, located on the circuit board inside of the All-In-One, can be used for resetting the device after battery replacement and for learn-in.

Common AiO Station Issues and Troubleshooting

IssueTroubleshooting Steps
Beeping and flashing once per secondConstant beeping and flashing indicates critical low battery. Replace battery immediately.
Constantly going into alarmPress Acknowledge button. If light flashes red and beeps 3 times check the diving board for constant activation. Also could be caused by misalignment of front membrane switch.
Low battery not clearingPress reset button immediately after replacing battery.  Low batteries can take up to 24 hours to clear from PalatiumCare. If low battery does not clear, check voltage of battery with multimeter.
Beeping Once Every Five SecondsGreen/Blue transmitter board needs to be reseated.  Use a Phillips screwdriver to remove the transmitter board and reinstall it.  Test again.
Pull Cord pulled outCut tied end off of pull cord. Restring through hole in bottom of AIO and hole in diving board. Retie with a double knot. Test knot by pulling on cord to tighten the knot and ensure it wont slip.
Always use Panasonic Lithium CR123A Batteries in PalCare All-In-One Stations
